Sketch out the installer

Browse Source
This commit is contained in:
Paul Betts
2014-07-28 14:56:52 +02:00
parent 684f242130
commit 3d1fd9023f
1 changed files with 18 additions and 47 deletions
Download Patch File Download Diff File Expand all files Collapse all files

65
specs/Installer.md
View File

@@ -1,59 +1,30 @@
# Installer
Installer just installs `WixUI` whose job is to:
The installer consists of two parts: `Setup.exe` (C++ bootstrapper) and `Update.exe` (C# Squirrel Client). There are several main design goals of the installer:
1. Run the client code to unpack the latest full NuGet package and finish
initial install.
1. Execute the uninstaller code when WiX goes to remove us, and remove the App
directory.
* Run as quickly as possible, with as little user interface interaction as possible. The faster we can get into the application, the better. An ideal install experience is that once `Setup.exe` gets clicked, within 3sec the application is running on the user's machine. Double-clicking `Setup.exe` should feel like clicking the app shortcut.
### So, on install:
* `Setup.exe` should be written such that it does as little work as possible, because C++.
1. WiX unpacks `WixUI` and runs it, and puts an entry in *Programs and
Features*.
1. `WixUI` executes initial install using `Squirrel.Client` for the full
NuGet package, doing the update in-place so the installer never needs to be
rebuilt.
* Running an older `Setup.exe` should simply execute the current app.
### On Uninstall:
* Support installation of non-C# applications
1. WiX gets notified about the uninstall, calls `WixUI` to do app
uninstall via `Squirrel.Client`
1. WiX then blows away `WixUI`, the "real" installed app.
## Setup.exe
## Bootstrap UI
Setup.exe does the following operations:

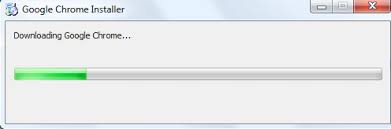

`WixUI` has an extremely simple UI when it does its work, it just pops
up, shows a progress bar, a-la Chrome Installer:
1. Determines if the .NET Framework is installed
1. If not, relaunches itself with `/installfx45`, which opens a progress dialog which downloads the .NET Framework and silently invokes it.
1. Extract `Update.exe` and `AppName-full.nupkg` to `%LocalAppData%\Squirrel\Temp` which are embedded as resources.
1. Execute `Update.exe` with the `/install` switch, and apply any switches that were applied to Setup.exe
1. Nuke the extracted temporary files from step 3.
![](http://t0.gstatic.com/images?q=tbn:ANd9GcS_DuuEyOX1lfeo_jDetHLiE17pp_4M-Xerj2ieGEkvQQ4h83w57IL5KD6Kzw)
## Update.exe
On Uninstall, there is no UI, it's solely in the background.
Update.exe is a generic client for Squirrel which supports several operations:
If Setup.exe gets invoked with the 'Install' action, and the app is already
installed, we just execute the app, a-la ClickOnce.
## Generating the WiX installer
The WiX install script is generated via a Mustache template, whose contents
are primarily populated via the generated NuGet release package. WiX will end
up installing `WixUI`, the latest NuGet package file, and a one-line
RELEASES file (meaning that what WiX installs is technically a valid Squirrel
remote update directory).
## WiX Engine Events and what we should do about them
* `DetectedPackage` - if we're installed (determine this by looking at the
NuGet package in the same directory as the app), we run the app and bail.
* `DetectComplete` - Do what we're actually here to do (invoke the Squirrel
installer), then on the UI thread, tell WiX to finish up.
* `PlanPackageBegin` - squelch installation of .NET 4
* `PlanComplete` - Push WiX to to Apply state
* `ApplyComplete` - If something bad happened, switch to UI Error state,
otherwise start the app if we're in Interactive Mode and call Shutdown()
* `ExecuteError` - Switch to the UI Error state
* `/install [File.nupkg] [/silent]` - Install the NuPkg file given (or any NuPkg files in the same directory as itself), and launch their applications. If `/silent` is given, don't launch anything. Copy `Update.exe` to the application root directory. Install also writes an entry in Programs and Features which will invoke `/uninstall`.
* `/uninstall` - Completely uninstall the application associated with the directory in which `Update.exe` resides.
* `/download URL` - Check for updates from the given URL and write information about available versions to standard output in JSON format.
* `/update` - Updates the application to the latest version of the files in the packages directory associated with the directory in which `Update.exe` resides.
